Standard Pallet Racking
IN Pallet Racking
About Product
Basic Info
| Name | Pallet Racking | Model No. | IPR01 |
| Capacity | Up to 4000kg/level | Material | Q235 or Q345 High Grade Steel |
| Certificate | TUV, CE, ISO9000 | Design Standards | Meet FEM, AS4084 |
| Finish | Powder Coating or Galvanized | ||
| Est. Cost | USD$38/Pallet Location | Price Validation | Dec. 2018 |
| Main Components | Frame (Upright, Bracing, foot plate), Beam, Frame Tie, and accessories included | ||
| Optional | Upright Protector, Frame Protector, Wire Decking, Support Bar, Back Mesh, etc. | ||
| Color | Standard color – Blue RAL5015, Orange RAL2004, Orange RAL2008, Yellow RAL1003, Grey RAL7047, Dark Grey RAL7011, Green RAL6001. Customized color available upon providing RAL number. | ||
| Packaging | Knockdown, well packed with plywood, plastic/steel strip, plastic film, cardboard box, plywood box. | ||
| Shipping Port | Nanjing / Shanghai, China | ||
| Payment Term | 40% as down payment, balance before delivery | ||
| MOQ | No Requirement | ||
| Lead Time | Standard 2-3 weeks | ||
| Warranty | 5 years | ||
–
Information needed if you want our designs and pricing:
1, Pallet Size and fork entry side
2, Pallet Weight and Height (loads included)
3, Storage Area measurements or Warehouse drawings
4, Expected storage capacity if you have
5, other details such as pallet flow frequency, forklift type, functional storage areas, etc.
2, Pallet Weight and Height (loads included)
3, Storage Area measurements or Warehouse drawings
4, Expected storage capacity if you have
5, other details such as pallet flow frequency, forklift type, functional storage areas, etc.
Keywords: Racking, Pallet Racking, Racking System, Storage Racking, Metal Racking, Warehouse Racking, Racking Manufacturer in China, Industrial Racking System;
Pallet Racking is ideal for storing high volumes of palletized materials in any number of facilities. Whether you want to organize your warehouse, medical records, retail displays, lumber, food, or anything else, we can build pallet racking to meet your demands. Optimize your warehouse space with pallet racks, where you’ll see an increase in storage capacity and a reduction on loss of goods. The racking system makes it easier to organize materials and quickly identify their location when needed.
Upright Column
| Upright Number | Width | Depth | Thickness | Capacity |
| IPRU8018 | 80 | 60 | 1.8 | 8500kg |
| IPRU8020 | 80 | 60 | 2.0 | 9400kg |
| IPRU8023 | 80 | 60 | 2.3 | 10500kg |
| IPRU9018 | 90 | 70 | 1.8 | 11000kg |
| IPRU9020 | 90 | 70 | 2.0 | 12500kg |
| IPRU9023 | 90 | 70 | 2.3 | 13500kg |
| IPRU1023 | 100 | 70 | 2.3 | 15500kg |
| IPRU1025 | 100 | 70 | 2.5 | 16900kg |
| IPRU1028 | 100 | 70 | 2.75 | 18500kg |
| IPRU1225 | 120 | 95 | 2.5 | 21000kg |
| IPRU1228 | 120 | 95 | 2.75 | 23100kg |
| IPRU1230 | 120 | 95 | 3.0 | 25000kg |
–
Box Beam
| Box Beam Number | Height | Width | Thickness | Hooks |
| IPRB8015 | 80 | 50 | 1.5 | 3 |
| IPRB10015 | 100 | 50 | 1.5 | 3 |
| IPRB11015 | 110 | 50 | 1.5 | 3/4 |
| IPRB12015 | 120 | 50 | 1.5 | 3/4 |
| IPRB14015 | 140 | 50 | 1.5 | 3/4 |
| IPRB16015 | 160 | 50 | 1.5 | 4 |
| IPRB16018 | 160 | 50 | 1.8 | 4 |
| IPRB16020 | 160 | 50 | 2.0 | 4 |
| IPRB18020 | 180 | 50 | 2.0 | 4 |
–
Step Beam
| Step Beam Number | Height | Width | Thickness | Hooks |
| IPRP6015 | 60 | 40 | 1.5 | 3 |
| IPRP6020 | 60 | 40 | 2.0 | 3 |
| IPRP8015 | 80 | 50 | 1.5 | 3 |
| IPRP8020 | 80 | 50 | 2.0 | 3 |
| IPRP1120 | 110 | 50 | 2.0 | 3/4 |
| IPRP1125 | 110 | 50 | 2.5 | 3/4 |
| IPRP6318 | 63.5 (2.5”) | 63.5 | 1.8 | 3 |
| IPRP7618 | 76.2 (3”) | 63.5 | 1.8 | 3 |
| IPRP8818 | 88.9 (3.5”) | 63.5 | 1.8 | 3 |
| IPRP1018 | 101.6 (4”) | 63.5 | 1.8 | 3 |
| IPRP1118 | 114.3 (4.5”) | 63.5 | 1.8 | 3/4 |
—

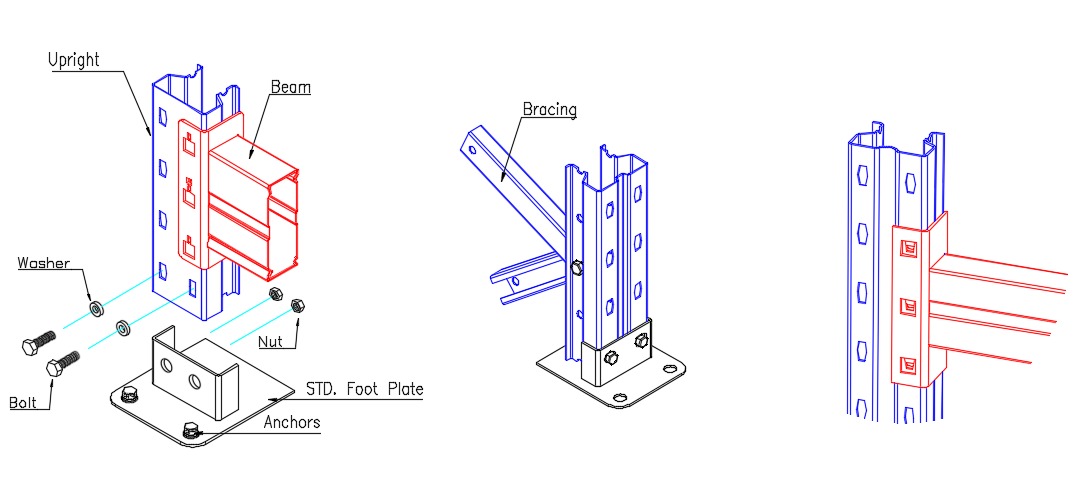

The Structure
Other Components
—
See Our Professional Product Packages
See Our Product Certificates
