Push Back Pallet Racking

IN Pallet Racking
About Product

Basic Info

  Name   Push Back Pallet Racking   Model No.   IPR07
  Capacity   Up to 1500kg/pallet   Material   Q235 or Q345 High Grade Steel
  Certificate   TUV, CE, ISO9000   Design Standards   Meet FEM, AS4084
  Finish   Powder Coating or Galvanized
  Est. Cost   USD$70/Pallet Location   Price Validation   Dec 2018
  Main Components   Frame (Upright, Bracing, foot plate), Beam, Frame Tie, carts, bearings, and accessories included
  Optional   Upright Protector, Frame Protector, etc.
  Color   Standard color – Blue RAL5015, Orange RAL2004, Orange RAL2008, Yellow RAL1003, Grey RAL7047, Dark Grey RAL7011, Green RAL6001. Customized color available upon providing RAL number.
  Packaging   Knockdown, well packed with plywood, plastic/steel strip, plastic film, cardboard box, plywood box.
  Shipping Port   Nanjing / Shanghai, China
  Payment Term   40% as down payment, balance before delivery
  MOQ   No Requirement
  Lead Time   Standard 3-4 weeks
  Warranty   1 year
Information needed if you want our designs and pricing:
1, Pallet Size and fork entry side
2, Pallet Weight and Height (loads included)
3, Storage Area measurements or Warehouse drawings
4, Expected storage capacity if you have
5, other details such as pallet flow frequency, forklift type, functional storage areas, etc.

Keywords: Push Back Racking, Push Back Pallet Racking, Push Back Racking System, Push Back Storage Racking, Push Back Metal Racking, Push Back Warehouse Racking, Racking Manufacturer in China, Industrial Racking System;

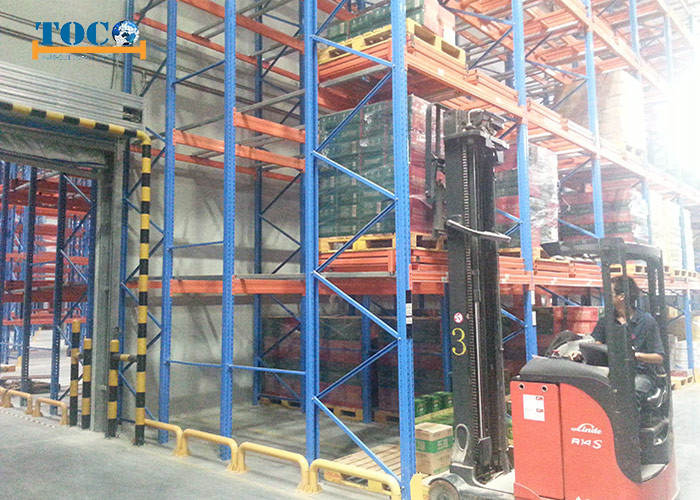

Push Back Pallet Racking uses rails and carts on standard pallet racking beams to achieve the pallets first in last out. It is suitable for same type of products with medium quantity. It increases utilization of warehouse space and reduce travelling of forklifts.

- Increased storage capacity
– First in Last out
– Ideal for goods with medium rotation, 2 to 4 pallets in depth as needed
– Less aisles then less traveling to switch between aisles
